FEATURES
LevelLEVEL monitors water level by measuring the distance to the water surface, while mounted safely above the water body, protected from fouling and corrosion that can damage submersible sensors.

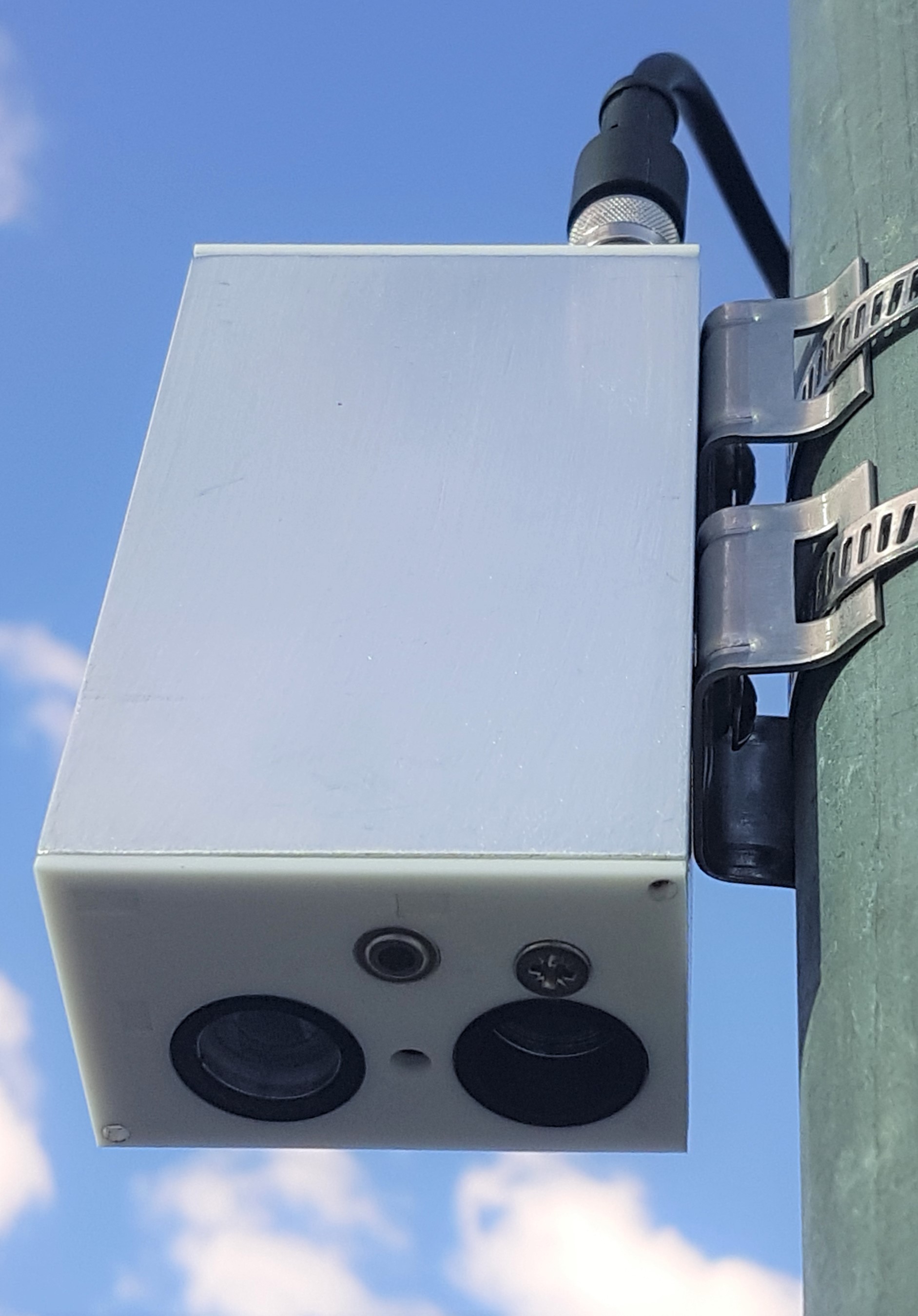

Small enough to mount anywhere
- INNOVATIVE MEASUREMENT TECHNIQUE. Near-Infrared laser reflection from water surface with eye-safe laser power levels. Measures over 35m range with suitable surface conditions.
- SDI12 or SERIAL. Configurable serial port for connection to a SDI12 master or as a serial output port for almost any system.
- ANALOG or ALARM. Configurable Aout port for 10-bit analog output (0-1V or 0-3.3V) or alarm output based on a configurable threshold.
Long-range
Up to 35m range
Non-contact
Non-fouling, no-drift, above flood elevation
Laser
Not affected by air temperature or ambient light conditions
High speed
Up to 200 readings per second for wave statistics
Accuracy
±25mm (<5m), ±100mm (5 to 35m)
Range
35m or better depending on surface reflectance (>75%)
Resolution
±1mm
Frequency
Up to 200Hz
SDI12
Extended command set for configuration & diagnostics
Serial
SDI12 port may be reconfigured for serial output
USB
Integrated USB serial port for configuration & diagnostics
Analog Out
0 to 1V or 0 to 3.3V outputs, 10-bit resolution, 1% Accuracy
Cable
Integrated terminals or detachable cables
Dimensions
104mm x 60mm x 40mm
Temperature
-10°C to +60°C operating range
Warranty
1 year
HOUSING OPTIONS

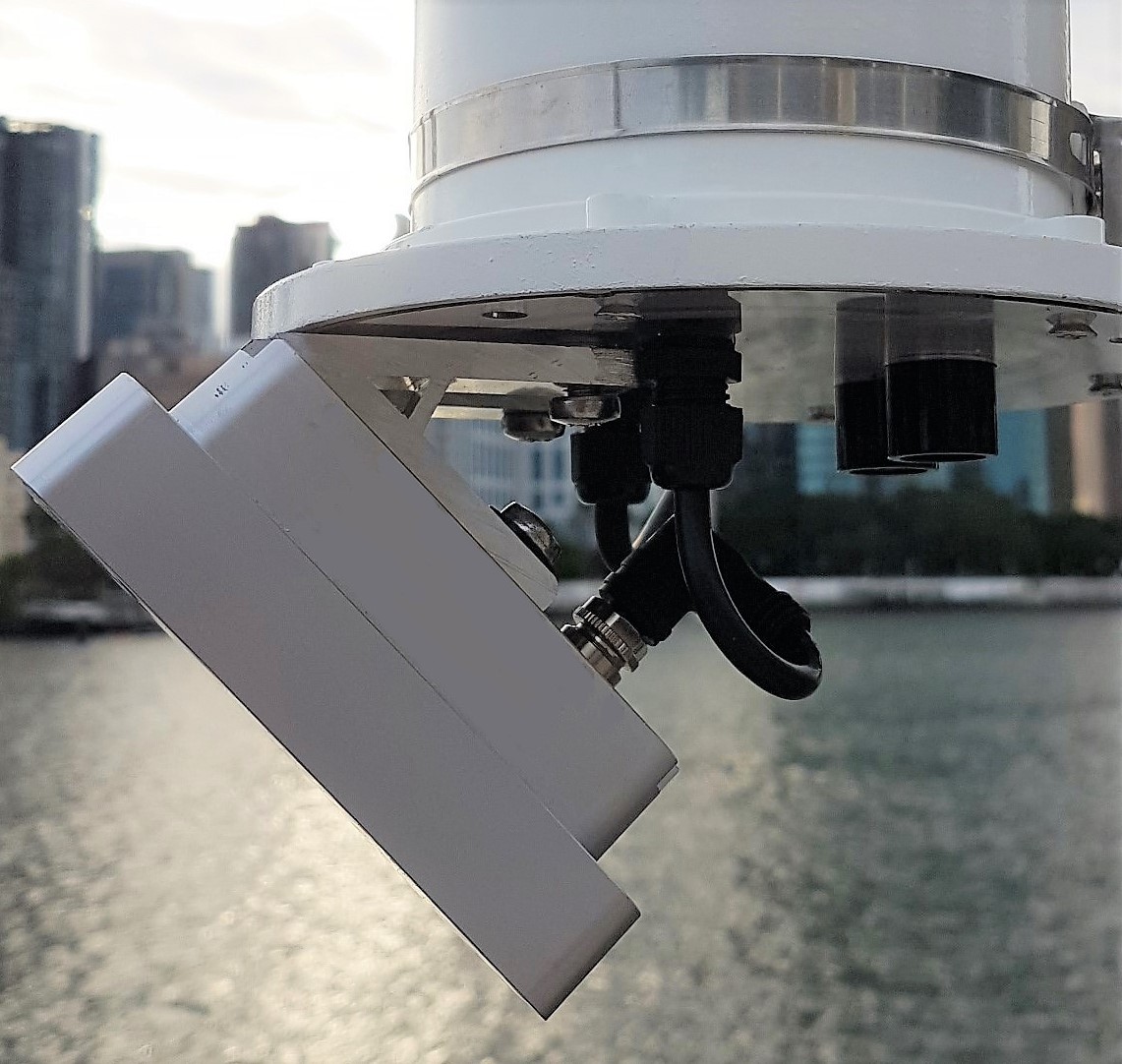

Weatherproof housing for external mounting away from telemetry system. This model has an integrated bubble level, weatherproof cable connection for SDI12, Aout and USB connection.
Internal housing for mounting in the bottom of another enclosure or protected environment (shown here with radar velocity sensor). This model has an integrated USB port and terminals for wiring
ADDITIONAL SENSORS
Optionally fitted with an integrated infrared thermometer for surface water temperature measurements or to detect the presence of boats or other objects under laser beam.
WAVE STATISTICS
Additional licenced firmware for highest speed data processing and wave statistics calulcations to derive Mean Wave Period (MWP) and Significant Wave Height (SWH) from level data
DOCUMENTS & SOFTWARE
Download
brochure and quick-start guide (coming soon).
